Le barriere Laser Proxitron della serie LLX offrono una molteplicità di funzioni e una riserva di funzionamento estremamente elevata; possono così rilevare oggetti sia caldi, sia freddi. La dove sono richieste elevata precisione e ripetibilità, le nostre barriere Laser rappresentato la soluzione finale per il rilevamento di piccoli oggetti o profili.
Via software o mediante la funzione teach, le barriere Laser sono facili da adattare alle più svariate esigenze applicative. Numerose altre possibilità vengono offerte dalla possibile regolazione del ritardo alla commutazione e allo spegnimento. E‘ presente un aiuto visivo all’orientamento per facilitare l’installazione della barriera Laser su distanze elevate.
La robustezza delle custodie garantisce un funzionamento affidabile anche con vibrazioni; l’ottica in vetro a tenuta per alte temperature, resiste all’irraggiamento termico. Per ambienti molto caldi sono disponibili custodie con mantello di raffreddamento. La presenza di sporcizia o di eccessivo calore viene segnalata sull’uscita con funzione di allarme.
Vantaggi
- LASER Class 2 can be used without additional protective action
- Individual settings for three switching outputs
- Alarm for excessive temperature or pollution
- Tech and test function
- extremely fast (0,5 ms/1000 Hz)
- robust and maintenance-free
- wide range of accessories
Application areas

- detection of hot and cold objects
- material tracking in drying ovens
- Detect material edges with high accuracy
- Detection of small objects
- jam detection
- prevention of obstruction material
- material tracking on conveyors in hot areas
- feeding control in high temperature processes
- vehicle height monitoring in outdoor conditions

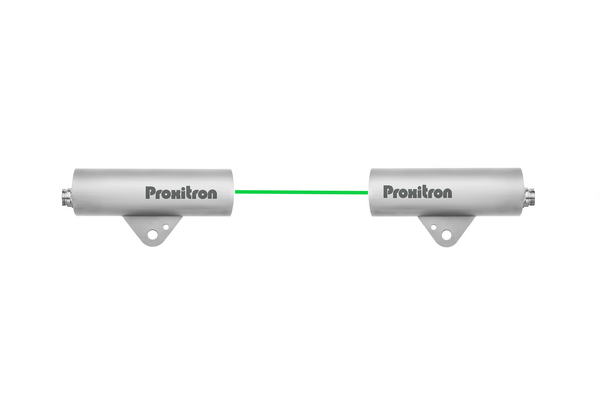

5067BLLAA 600.3 S4 Laser Einweg-Lichtschranke , Transmitter , -25°C up to 50°C
Range: 2500m,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 173mm , Ø57mm , Plug ,
Data sheet »5068BLLXSA 600.3A GV S8 Laser Einweg-Lichtschranke , Receiver , -25°C up to 70°C
Range: 2500m,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 171mm , Ø57mm , Plug ,

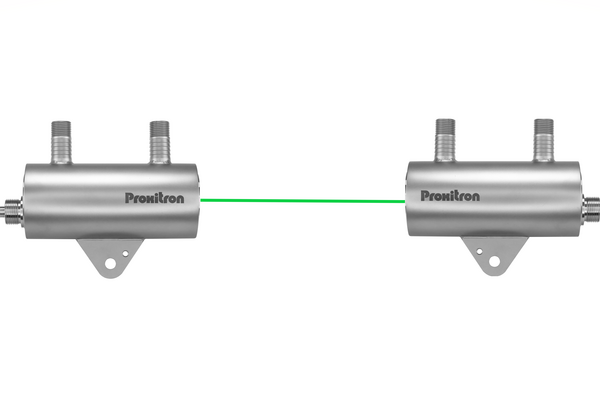

Data sheet »5067ALLAB 600.3 S4 Laser Einweg-Lichtschranke , Transmitter , -25°C up to 200°C
Range: 2500m,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 173mm , Ø76mm , Plug , with Test function ,
Data sheet »5068ALLXSB 600.3A GV S8 Laser Einweg-Lichtschranke , Receiver , -25°C up to 200°C
Range: 2500mm,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 196mm , Ø76mm , Plug ,

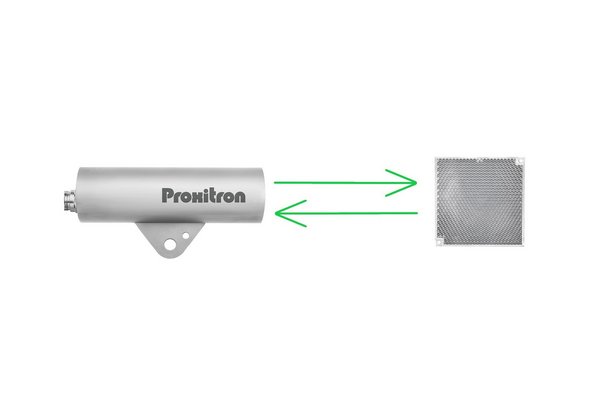

Data sheet »5069BLLXRB 600.3A GV S8 Retro-reflective Sensor , , -25°C up to 200°C
Range: 200m,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 196mm , Ø76mm , Plug ,
Data sheet »5069ALLXRA 600.3A GV S8 Retro-reflective Sensor , , -25°C up to 0°C
Range: 200m,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 196mm , Ø57mm , Plug , * bezogen auf Reflektor ORL 01 51 x 61 mm
Data sheet »

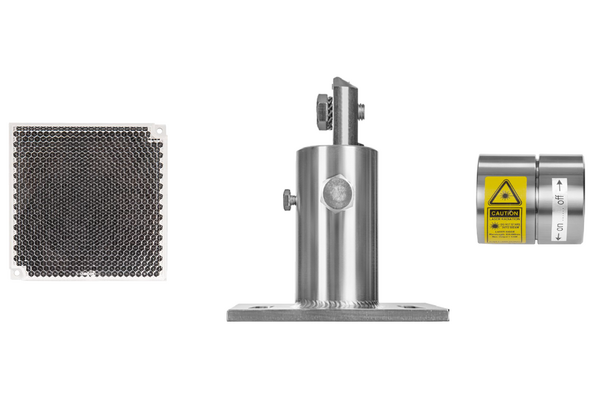

Tubo
Tube for optical laser sensors with air blow attachment:
- Tube OL 19,for optical sensors with housing Ø 57 mm, art.-no.: 9828A
- Tube OL 21, for optical sensors with housing Ø 76 mm, art.-no.: 9828C
- Tube OL 36, for optical sensors with air blow attachment, art.-no.: 9828S
