Pirometro a quozienti OKSL Q

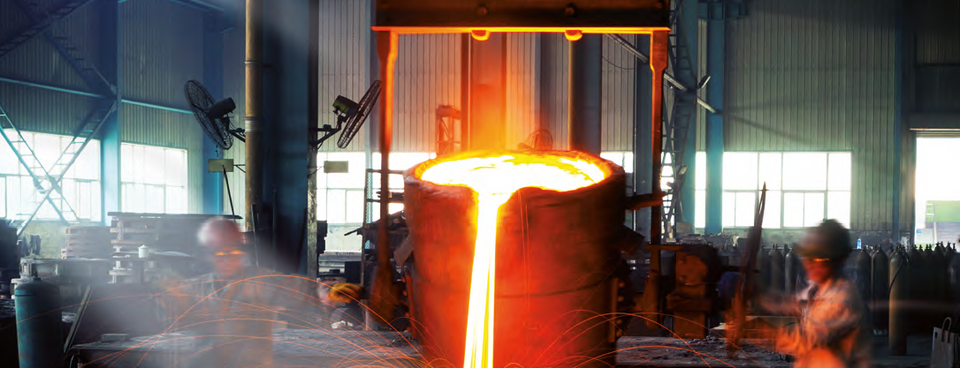

Proxitron ratio pyrometer OKSL Q for non-contact temperature measurement of moving objects, e.g. casting stream in the temperature range from 700 °C to 1800 °C.



Proxitron Ratio Pyrometer OKSL Q makes the measurement of highly fluctuating metal objects possible. Thanks to its special optics, accurate measurement is achieved already at 10% coverage of the measuring spot, which makes this model ideal for monitoring and control tasks in foundries or in the wire production. The ration correction provides very high accuracy no matter what the surface properties are, or if the emissivity of the metal objects varies.

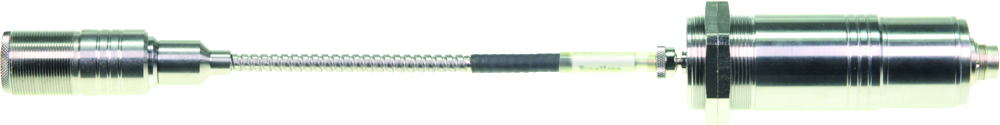

The incorporated LASER light makes precise alignment on the object to be measured easier, as the light dimension approximately represents the measurement spot. The optics and the fibre light cable are suitable for ambient temperature up to 250 °C, which allows measurement quite near the hot material. The device is provided with a connector with 0/4-20 mA analog output in 24 V DC, and also with a RS-485 interface with galvanic isolation, allowing the parallel operation of up to 32 devices via MODBUS RTU.




Unser Pyrometer OKSL Q im Überblick

Caratteristiche

Misura della temperatura da -40 °C a +2500 °C

Precisione fino a 1 %

Tempo di risposta da 10 msec

Diverse ottiche

Testa di misura in custodia inox M12

Temperatura ambiente fino a +70 °C

Scatola elettronica con diplay OLED incorporato

Memorizzazione del valore min e max

Uscita 0/4-20 mA

Interfaccia RS 485

Campo di misura, emissività e frequenza di lettura modificabili via software

Software Windows per parametrizzare, visualizzare, memorizzare ed elaborare i dati di misura

Vasta gamma di accessori

Aree di applicazione

  • Controllo temperatura sulle presse
  • Gestione dei processi nell’industria cartaria o della plastica
  • Controllo temperatura nell’industria alimentare
  • Riscaldamento e condizionamento
  • Impianti elettrici, elettronica
  • Costruzione strade
  • Industria chimica
  • Costruzione forni
  • Ricerca e sviluppo
  • Acciaierie e laminatoi
  • Fucine
  • Stampaggio
  • Processi a caldo (saldatura, sinterizzazione, tempra

Downloads


Software e accessori

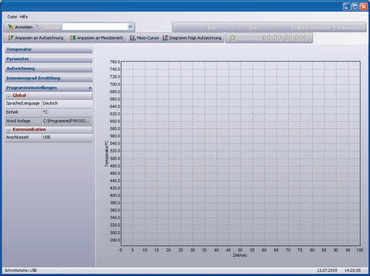

Il software multilingue in dotazione basato su Windows permette di:

  • Modificare il campo di misura e l’emissività;
  • Visualizzare, registrare ed elaborare i valori di misura, in °C / °F;
  • Impostare la memorizzazione del valore min. e max, e dell’intervallo di misura, per il pirometro.

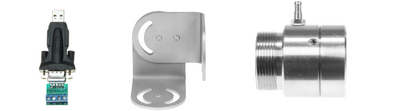

Extensive range of accessories

Furthermore, our extensive range of accessories allows you to customise your device to suit a variety of operating conditions.

Mounting units

Connection cables

Connection cable 12-pole, with female straight plug, for units with plug S10:

  • Connection cable 2m long, ST S10/12-2, Art.-No. 9847H
  • Connection cable 5m long, ST S10/12-5, Art.-No. 9847D



Datesheet >>





Fiber optic cables

The following fibre optic cables for ambient temperatures from 0 °C to 250 °C are available for our OKS L pyrometers:

  • Fiber Optic Calbe 3m long, LLKS3, Art.-No. 6913P
  • Fiber Optic Cable 6m long, LLKS6, Art.-No. 6913U
  • Fiber Optic Cable 10m long, LLKS10, Art.-No. 6913K


Datasheet >>





Air purge unit

Air purge unit DAK 325 with air connection to protect against contamination for infrared pyrometer optics DAK 32.



Datasheet >>
