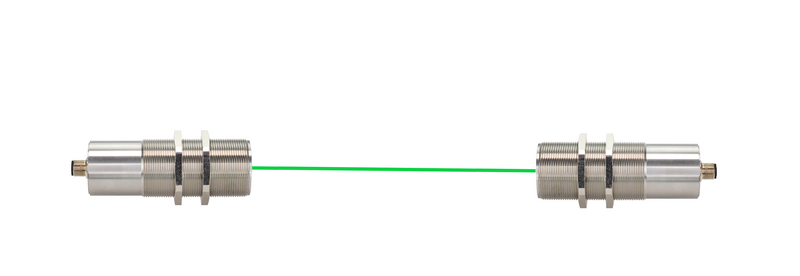

Proxitron LASER Through-Beam Light Barriers M40 in a compact design are equipped with a wide range of functions.
The extremely long range of our M40 sensors enables the detection of hot and cold objects and is ideal for object detection in constrained installation situations. According on the application, a version with LASER or invisible infrared light version is available, and offers maximum operating reserve thanks to its enhanced range.
Our software enables parameterisation for a wide range of tasks, and the alarm function signals contamination and excessive temperature. The optics are made of temperature-resistant glass and are resistant to radiant heat.
Settori applicativi
- Detection of hot and cold objects
- Material tracking in drying ovens
- Jam detection
- Prevention of obstruction caused by collapsed material
- Material tracking on conveyors in hot areas
- Feeding control in high temperature processes
- Vehicle height monitoring in outdoor conditions
- Object detection in dense environment (dust, vapour, water, smoke)
- Detections of parts on conveyor belts in areas with spraying mist
5070ALLAS 600.2 S4 LASER Einweg-Lichtschranke , Transmitter , -25°C up to 70°C
Range: 750 mm,
10 - 30V DC, Housing Material: Edelstahl,Length: 108mm , Ø40mm , Plug , with Test function ,
Data sheet »5071ALLAS 600.2A GV S8 LASER Einweg-Lichtschranke , Receiver , -25°C up to 70°C
Range: 750 mm,
12 - 30V DC, Housing Material: Edelstahl,Length: 108mm , Ø40mm , Plug , with Test function ,
Data sheet »
