Thru-Beam light barriers up to +200 °C

Thru-Beam Sensors up to +200 °C

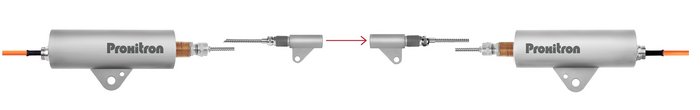

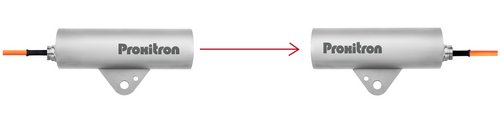

Proxitron thru-beam sensors for detecting cold and hot material.

Product selection

In addition to our through-beam sensor standard version, discover the sensors of the Proxitron LX series and our universal light barrier of the LX series.

5037JLAB 600.3 S4 Thru-Beam Sensor , Transmitter , -20°C up to 200°C
Range: 2500m,
10-55V DC , Cooling Jacket, Housing Material: Edelstahl,Length: 170mm , Ø76mm , Plug , with Test function , Dirt Control ,

Data sheet »
5038JLSB 600.38 GV S4 Thru-Beam Sensor , Transmitter , -20°C up to 200°C
Range: 2500m,
10-55V DC , Cooling Jacket, Housing Material: Edelstahl,Length: 170mm , Ø76mm , Plug , with Test function , Dirt Control ,

Data sheet »
5060BLXAB 600.3 S4 Thru-Beam Sensor , Transmitter , -25°C up to 200°C
Range: 2500 mm,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 196mm , Ø76mm , Plug , with Test function ,

Data sheet »
5062BLXUB 600.3A GV S8 Thru-Beam Sensor , , -25°C up to 200°C
Range: 65m,
12 - 55V DC , Air Connection , Cooling Jacket, Housing Material: Edelstahl,Length: 196mm , Ø76mm , Plug ,

Data sheet »

Further accessories for our thru-beam light barriers >>

Thru-beam sensors for a lower or higher ambient temperature

up to 70 °C

[Translate to Italian:] Proxitron Einweg Lichtschranken

up to 600 °C

Proxitron Einweg Lichtschranke bis 600 °C

Are you looking for a reliable thru-beam light barrier for use in your application?
